Description:
Engine Timing Chain Settings Tools Kit for VAG 2.0 FSI TFSI with VW Genuine T40080 Socket for camshaft adjuster bolt.

VAG VW / AUDI COMPLETE TIMING TOOL KIT FOR 2.0L FSI and 2.0L TURBO ENGINES FSI AND TFSI

Tools are required when replacing timing chain and chain tension between camshafts (on the back of the engine/ gearbox / on the opposite side of timing belt) for correct timing on 2.0L VW/AUDI Turbo engines.

VW / AUDI COMPLETE TIMING TOOL INCLUDE:

T10252     Camshaft Locking Tool     Use to lock both camshafts.

T10060A  Tensioner Locking Pin      Use to lock the tensioner in the loose position.

T10115     Tensioner Locking Pins    Use to lock the timing belt tensioner into place.

T10020     2 Pin Tensioner Wrench   Used to get correct tension on the timing belt.

T40011    Tensioner Locking Pins     Use to lock the timing belt tensioner into place.

3366 CAM CHAIN TENSIONER RETAINER Use to hold the chain and tensioner in position during assembly and disassemble.

APPLICATIONS (see bellow for full application chart):  VW, Audi FSi, TFSi Turbo 2.0L engines 2004-2009 BELT ENGINE Audi A3 2.0 FSI and FSI SOHC engine codes: AWA, BHD, BMB, VW Golf 2.0 FSI and 2.0 FSI SOHC and Touran 2.0 FSI SOHC engine codes AWA AXW.

NOTE: welding locking pins to the plate may be required. Tool pins sometimes bends, when you trying to undo the bolt if cam adjuster bolt is stubborn. In this case welding it together to make it solid will be required. Alternative buy genuine T10252 tool.

Many branded tools give a tiny change but usually result is the same, banana in the next second.

Contents:

-Timing belt tensioner Audi: 2.0 FSI, 2.0 TFSI, 1.8 Turbo, 1.8, 2.0, 4.2 petrol, 1.4, 1.9 TDI PD, 2.5 TD, Seat: 2.0 FSI, 1.8 Turbo, 1.6, 2.0 1.4, petrol1.9, 2.0 TDI PD, 2.0 TDI PD FR, 2.0 TDI PD FT4, Skoda: 2.0 FSI, 2.0 vRS, 1.8 Turbo, 2.0 petrol, 1.4, 1.9, 2.0 TDI PD, 2.5 TD, VW: 1.6, 2.0 FSI, 2.0 TFSI, 2.0 GTI FSI, 1.8 GTI, 1.4, 4.2 petrol, 1.2, 1.4, 1.9 TDI PD, 1.9, 2.0 SDI, 1.4 TDI PD BM engines

-Timing belt tensioner Seat: 1.8 Turbo, 1.8 V16. 1.8 Cupra R engines

-Timing belt tensioner Audi: 2.0 TFSI, 2.0 S, 3.0 petrol, 1.9, 2.0 TDI PD, Seat: 2.0 FSI, 2.0 TFSI, 2.0 TFSI FR (Cupra) benzines, 1.4, 1.9, 2.0 TDI PD, 2.0 TDI PD FR, 2.0 TDI PD FT4, VW: 2.0 FSI petrol, 1.4, 1.9, 2.0 TDI PD, 2.0 SDI engines

-Special screw with washing Audi: 1.8 Turbo, 2.0 TFSI, 2.0 S, 1.8, 2.0 Seat: 1.8 Turbo, petrol engines

-Timing chain tensioner Audi: 1.8 Turbo, 1.8, 2.0, 3.7, 4.2, Seat: 1.8 Turbo, 1.4, 1.6 V16, 1.8 Cupra R, 1.4, 1.8, 2.3 petrol, 1.9, 2.0 TDI PD, 1.7, 1.9 SDI, Skoda: 1.8 Turbo, 1.8 Turbo V20 RS petrol: 1.8 Turbo, 2.0 v20, 1.8 petrol engines

-Camshaft locking tool Audi: 2.0 FSI/S, Seat: 2.0 FR, 2.0 FSI, 2.0 FSI FT4, 2.0 TFSI, 2.0 TFSI FR (Cupra), vw: 2.0  FSI/TFSI

-Camshaft disc tool Audi, Seat,  Skoda, VW

Suitable for:

 Audi: A2, A3, A4, A4 Cabrio, A4 Quattro, A6, A6 Quattro, Cabrio, A8, S3, Alldoad, RS6, TT

 Seat: Alhambra, Altea, Altea XL, Cordoba, Ibiza, Leon, Toledo

 Skoda: Fabia I-II, Octavia I-II, Octavia Tour, Roomster, Superb

 VW: Beetle, Bora, Caddy, Caddy Maxi, Eos, Fox, Golf, Jetta, Lupo, Passat, Polo, Sharan, Tiguan, Touran, Transporter

Engine codes:

Audi: BHC, ATL, AMF, BLX, BMB, BVY, BHD, BLY, AXW, BLR, BVZ, BKC, BLS, ASZ, ATD, AXR, AZV, BKD, BMN, BMM, AXX, BPY, BWA, AWA, AKE, AYM, BCZ, BDH, BAU, BDG, BFC, AFB, AKN, BRF, BVF, BNA, BRE, BLB, BVA, BVG, BUL, AVJ, BFB, AMB, BEX, ALT, BDG, BCZ, BRD, BPJ, AWT, AKN, BCY, BRV, BAM, AUM, APX, ARY, AJQ, APP, AUQ, AVB, AVF, AWX, BKE, BRB, BRC, BPW, BWT, BYK, BBJ, ASN, BHZ, BZC, CDLB, ARH, ARX, AGU, AQA, ARZ, AGN, APG, ANB, AJL, AEB, APU, ATP, AVV, ARG, ADR, AJP, AMK, APY, CDBL, BFV, BVR, AMU, BVP, APT, APJ, BFL, BFM

Seat: BVH, BRT, BLR, BLY, BVZ, BVY, BLS, BJB, BKC, AZV, BKD, BMM, BMN, BGU, BSF, BSE, ASY, BMS, BNV, AMF, BNM, BMT, BPX, BUK, ASZ, ATD, AXR, BLT, AZL, AYP, BJX, BKV, BLZ, BBU, BXE, BFQ, AQX, APY, BAM, AMK, AUQ, APP, AJQ, ARY, AGN, APG, APT, BVK, ANU, AUY, BTB, BUH, BWA, BUY, BUZ, ARL, BWA, BWJ, AWC, AJH, AFK, AQQ, AUB, AKU, BKY, BBY, BXV, BBZ, AFH, AUA, AUB, APE, BXW, AZD, BCB, AUS, AMK, AHW, BCA, AXP, AGZ, BWA1,

-Skoda: AMF, BNM, BNV, BMS, BSW, BLS, BVY, BLX, BVX, BUZ, BLR, BLY, BJB, BKC, BKD, AZV, BMN, BWA, AXR, AYM, BDG, AWT, AZM, ARX, AGU, ARZ, AUM, AUQ, AGN, AWT

-VW: ATD, AXR, BFS, AYD, AJM, ANU, ARL, ASZ, AUY, APF, AEH, AKL, AVU, BFQ, BLS, BSU, BJB, BGU, BSF, BSE, BST, BDJ, BUZ, BUY, BMM, BPY, BWA, BNM, AXW, BLR, BLY, BUX, BLX, BWA, AXX, BPY, BDK, BRU, BXE, BKC, BXF, AZT, BCA, BRM, AMF, ANY, BKP, BWV, BVE, BMR, BMA, BUZ, BMP, BJX, ASY, BAJ, BMS, BWB, BMT, BLT, BMS, AUR, BTB, BVK, BRT, BKD, AXQ, BHX, AVQ, AXB, AXC, BRR, BRS, BZY, BVX, BVZ, AZV, BMN, AVB, AWX, AVF, BHW, BGW, BNV, BAY, AVC, AUM, AUQ, ARZ, AGU, AQA, BUL, AGN, ALT, AWT, AEB, ANB, APU, ADR, ARG, APT, BBU, AWC, AJH, BVY, AXX

Suit for Audi A3, for VW Golf, for Touran, from 2004
For vehicles with engine codes AWA, BMB and AXW to set the engine timing, timing belt changing and other engine repairs
Locking pin to use for locking the timing belt tensioner for OEM VAG T 40011
Locking pin, used to hold ribbed belt tensioner in place while removing and installing to use for OEM VAG T 10115
Clamping screw to use to relax the timing belt tensioner for OEM VAG T 100 92
To use lock mandrel for locking the clamping element in the assembly and disassembly of V-ribbed belt for OEM VAG T 100 60 A
Holder for chain tensioner, for off - to use and installation of the camshaft adjuster, such for OEM VAG 3366
Camshaft clamp, for off - to use and installation of camshafts, such for OEM VAG T 10252
Idler key to use for setting the timing belt tensioner for OEM VAG T 100 20

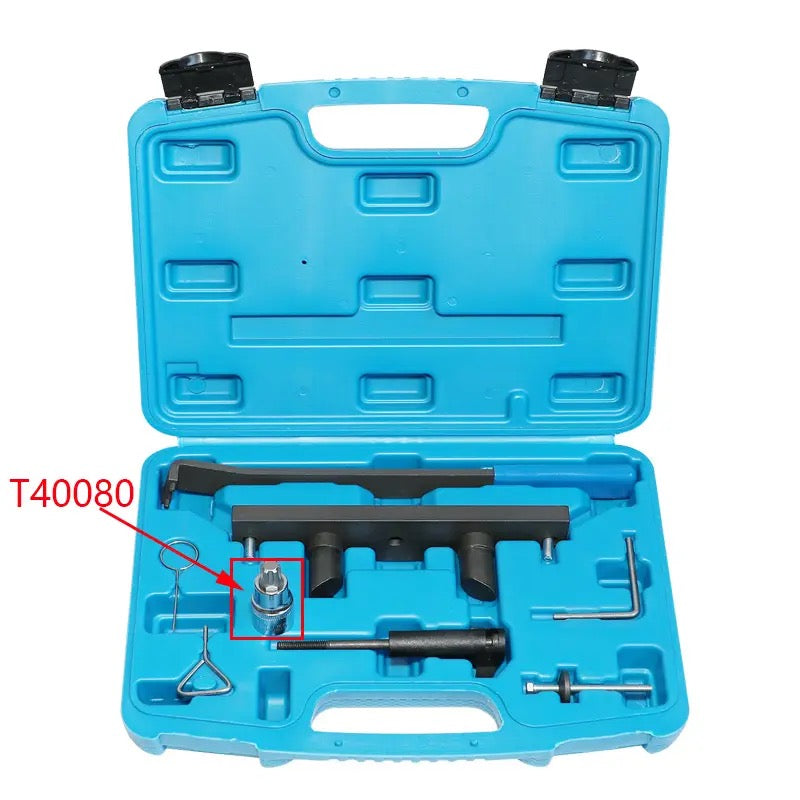

Includes VW Genuine T40080 socket for camshaft adjuster bolt, this VW specific tool that will not brake! Standart Ribe, Torx tools will damage the bolt or brakes.

Completely sorted in plastic box, colour may vary.

Happy bidding and please check our other listings!
